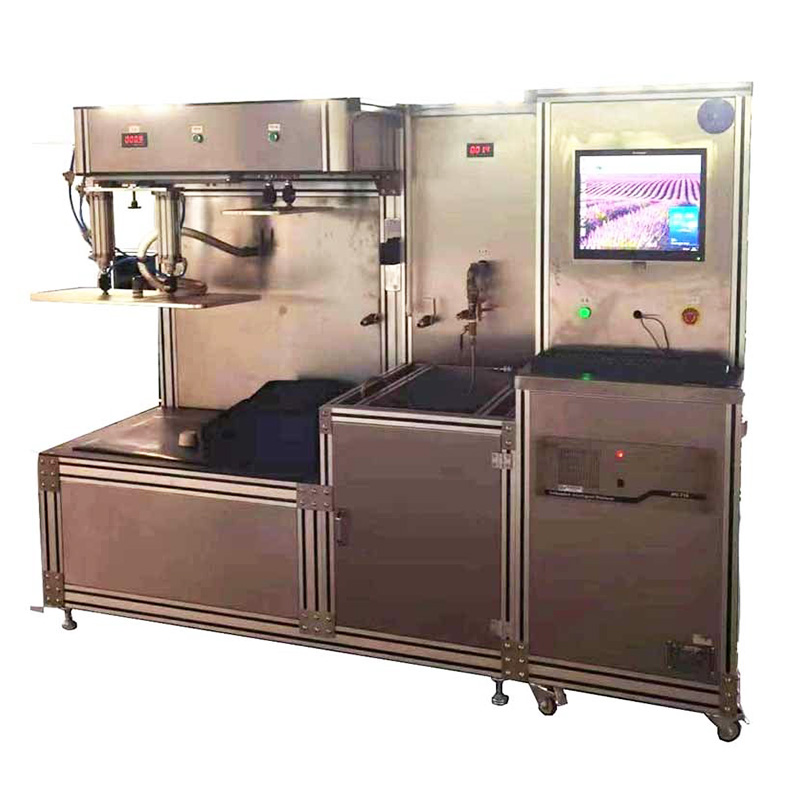

Hardware&Accessories Testing Machine

Product description

This machine is mainly used for testing the spraying force of shower heads.

Control system

This machine adopts PLC and corresponding test monitoring and recording programs, and is composed of PLC, water pumps, etc. to form a control system. The test program can run automatically.

Comply with standards

Showerhead: GB 28378-2019 3.4 Spray Power

Technical parameters

1. Working voltage: Three-phase AC380V

2. Power consumption: Up to 3KW

3. Test medium: Normal temperature water

4. Working water pressure: Constant pressure variable frequency water supply system. The water pressure can be directly set on the touch screen, with a setting range of 0 to 0.6MPa and an accuracy of grade 1

5. Pressure detection accuracy: A 0.5-grade precision pressure sensor is adopted, with a measurement range of 0 to 1.0MPa

6. Test workstations: 2

7. Force sensor: 0-100N, accuracy 0.01N, precision 2%±

8. Test product range: Shower head

9. Water tank: Net capacity of 50L or more, including protective devices

10. Overall dimensions: approximately 1400*1000*1800mm
