Table tennis hardness test machine

Short Description

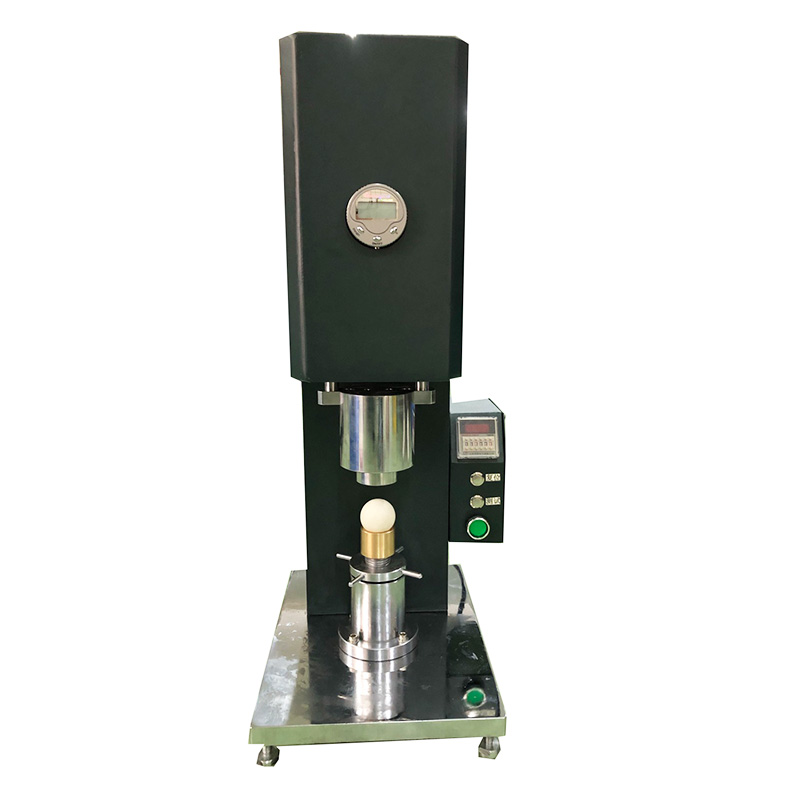

The upper end of the lifting shaft of the hardness tester is equipped with a ball seat, which is used to adjust and fix the test ball. During the test, first manually contact the thickness gauge with the ping-pong ball, manually reset to zero, then apply a fixed 50N load. After 15 seconds, manually read the value, and the lifting shaft returns to its original position. Rotate the ball smoothly by 180° and test it in the same way. Then calculate the hardness difference between the two readings.
SEND INQUIRY NOW

Product Details

Equipment purpose

The upper end of the lifting shaft of the hardness tester is equipped with a ball seat, which is used to adjust and fix the test ball. During the test, first manually contact the thickness gauge with the ping-pong ball, manually reset to zero, then apply a fixed 50N load. After 15 seconds, manually read the value, and the lifting shaft returns to its original position. Rotate the ball smoothly by 180° and test it in the same way. Then calculate the hardness difference between the two readings.

Comply with standards

The Rockwell hardness test of table tennis balls meets or exceeds the requirements of the GB/T 20045-2005 standard.

Technical data

1. Sample seat: φ30 ±0.5mm copper universal seat

2. Loading load: 50N±0.5N

3. Test device: Dial indicator adjustment

4. Test accuracy: 0.01mm

5. The rest meet the requirements of the relevant items in the GB/T 20045-2005 standard.
