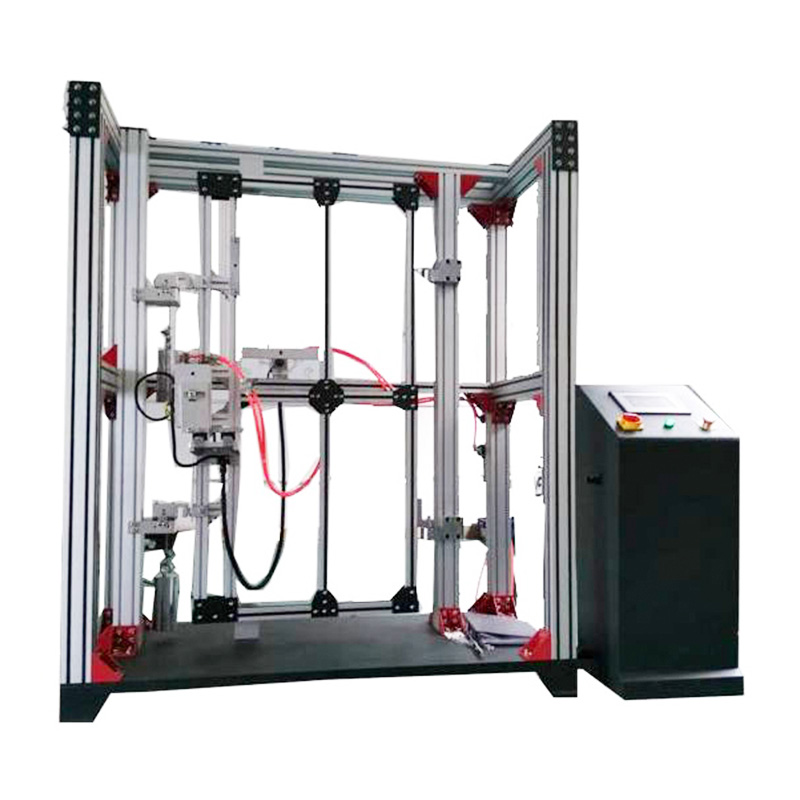

Lock testing machine

Product description

Professional equipment specifically designed for testing the durability and reliability of components such as door and window transmission lockers, multi-point lock systems, and connecting rod mechanisms under long-term and repeated operation. This device simulates the opening and closing actions in actual use, and conducts cyclic tests on the samples at the set speed, frequency and load to detect their wear, deformation, fracture or functional failure, thereby evaluating the fatigue life and performance stability of the products.

Test Method

5.4.5 Repeated opening and closing

5.4.5.1 Transmission lock device without locking tongue

After the opening and closing cycle according to the frequency of use,  each component shall be free from distortion and shall not affect the normal use.

5.4.5.2 Transmission lock device with lock tongue

After the opening and closing cycle according to the frequency of use,  each component shall be free from distortion and shall not affect the normal use.

6.4.5 Repeated opening and closing

6.4.5.1 Transmission lock device without locking tongue

After the opening and closing cycle according to the frequency of use,  each component shall be free from distortion and shall not affect the normal use.

Technical Parameter

1. Structure: (aluminum profile)

2. Suitable for flat open, upper hanging, lower hanging doors and Windows drive lock

3. Transmission mode: rotating cylinder + push and pull cylinder

4. Torsion Angle: 0-180 degrees adjustable

5. Torsion speed: 0-20 times / minute is adjustable

6. Weight: 70N

7. Control mode: PLC + touch screen

8. Volume: length 1.5 * width 0.7 * height 1.8 meters

9. Power supply: AC220V, 50 HZ
