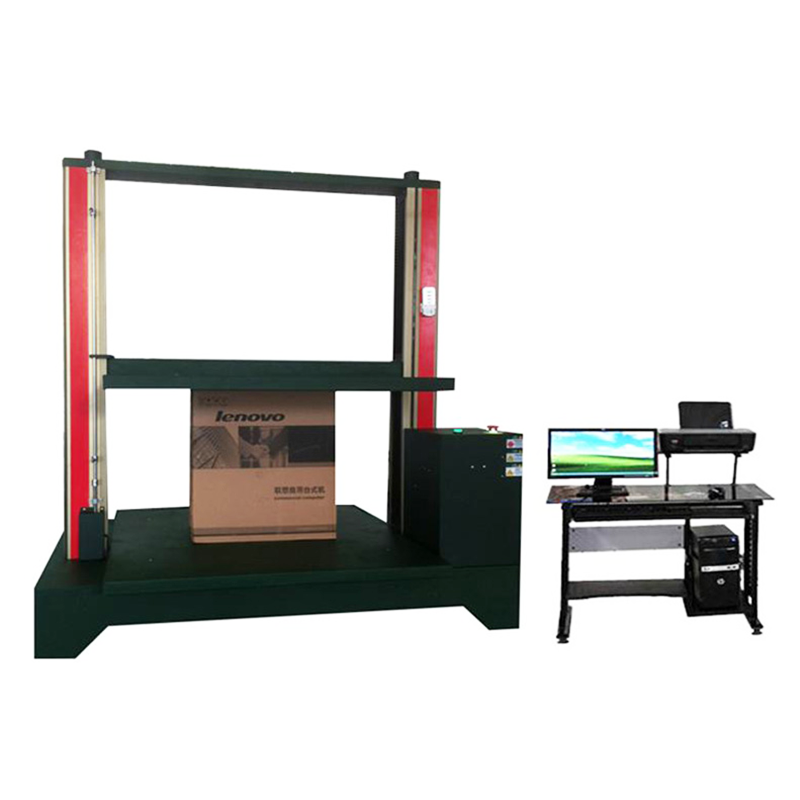

Packaging and transportation testing machine

Product description

This machine adopts high-precision Load Cell sensing and can test the pressure resistance strength of cartons and containers made of other materials.

Comply with standards

It complies with the relevant requirements of the standards TPI-804,JIS20212 and GB/T4857.

Technical parameters

1. Capacity of choice: 500 kg, 1000 kg, 2000 kg, 5000 kg, 10000 kg, 20000 kg, 50000 kg optional

2. Unit switching: kg,N,1b switching

3. Load decomposition degree: 1/100,000

4. Load accuracy: within ±3/1000

5. Test space: 800*800*800mm, 1000*1000*1000mm, 1200*1200*1200mm, 1500*1500*1200mm (or specified)

6. Compression speed standard :12.7mm/min, to be set arbitrarily

7. It can be used for pressure holding tests (stacking tests): The pressure holding time or pressure holding force can be set arbitrarily

8. Weight: 1043kg

9. Power Supply: 2∮,AC 220V,2.7A, 415V,2.1A

10. Protective devices: Equipped with upper and lower travel control switches, program setting for maximum load, maximum extension, and automatic shutdown emergency switch

11. Stopping mode: Upper and lower limit safety Settings, emergency stop button, program force and elongation Settings, specimen failure sensing

12. Material: Aluminum plate. Keep the parallelism of the upper and lower pressure plates

13. Printing function: Serial number, peak value, average value, memorizable
