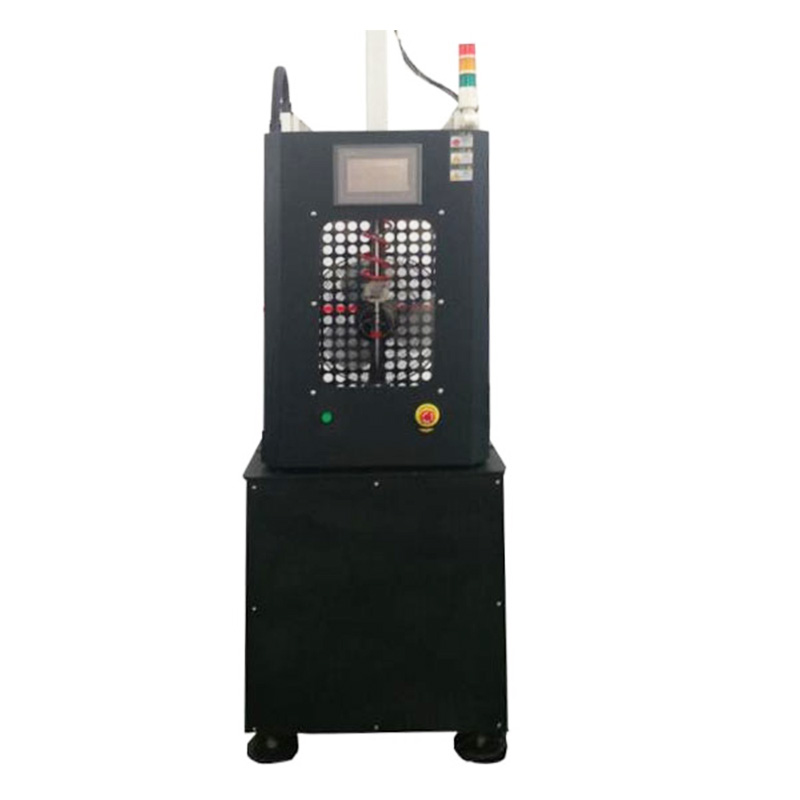

Chair testing machine

Product description

This machine is suitable for air pressure rods used in various industries, such as bicycles, office chairs, furniture, mattresses, air motorcycles, etc.

Conform to the standard

GB 25751-2010, GB/T 29525-2013

Technical parameters

1. Test station: Single station, electric cylinder loading

2. The test length range of the air pressure rod is adjustable from 0 to 500MM

3. Load cell: 500kg, accuracy ±1%

4. Control system: PLC+ human-machine interface

5. The touch screen displays the test speed, test frequency, sample temperature and test times in real time. It features air cooling control and the test device is driven by an electric cylinder, providing more precise control.

6. Test frequency: 1-40 times per minute

7. Test count: 1 to 999.999

8. Dimensions: Length 680× Width 660× Height 2280

9. Weight: 155kg

10. Power Supply: AC ~ 220V 50Hz

Product features

1. Numerical control human-machine interface, highly stable PLC control, one-meter setting of time/frequency/force, and indication.

2. You can set the number of times, time (s), and strength by yourself.

3. The fully automatic display of sample temperature monitoring and the electric cylinder control speed are more precise. There is no need to manually adjust the proximity switch for position control testing.

4. Fully automatic counting (0 ~ 999,999 times), peak force function, force retention function, and load protection function;

5. Automatic shutdown upon reaching the set number of times, password protection for correction, power-off protection, power-off memory, semi-automatic/fully automatic selection, automatic data saving, low voltage operation, shutdown at breakpoint, and one-click operation.
