In today’s competitive landscape, product failure due to thermal stress can cost manufacturers millions in recalls, reputation damage, and lost sales. Enter the programmable two-chamber thermal shock chamber—a critical tool for simulating real-world temperature extremes and ensuring product durability. Our LT-TS2 series sets the industry standard for precision, reliability, and efficiency, making it the go-to choice for quality-driven organizations worldwide. This comprehensive guide will demystify thermal shock testing, explore key specifications, and help you select the right chamber for your needs.
1. What Is a Programmable Two-Chamber Thermal Shock Chamber?
1.1 Definition & Core Functionality
A programmable two-chamber thermal shock chamber is a dual-zone environmental testing system designed to expose samples to rapid temperature transitions between separate high and low-temperature zones. Unlike single-chamber alternatives, our LT-TS2 series achieves transfer times as fast as 10 seconds, replicating the sudden thermal stress components face in real-world applications—from aerospace electronics to automotive components. This two-chamber thermal shock tester eliminates ambient temperature exposure during transitions, providing more accurate results that directly correlate with field performance.
1.2 Two-Chamber vs. Three-Chamber Thermal Shock Systems
The two-chamber design offers distinct advantages over three-chamber alternatives. By physically moving samples between dedicated hot and cold zones via a dynamic basket system, our programmable two-chamber thermal shock chamber delivers faster transition times, reduced energy consumption, and a smaller footprint. Unlike three-chamber systems that require heating/cooling of a central test area, our dual-zone approach maintains constant extreme temperatures in both chambers, ensuring consistent test conditions cycle after cycle. For applications requiring rapid, uncompromised thermal shock—such as testing electronic circuit boards or battery components—the two-chamber design is unmatched.

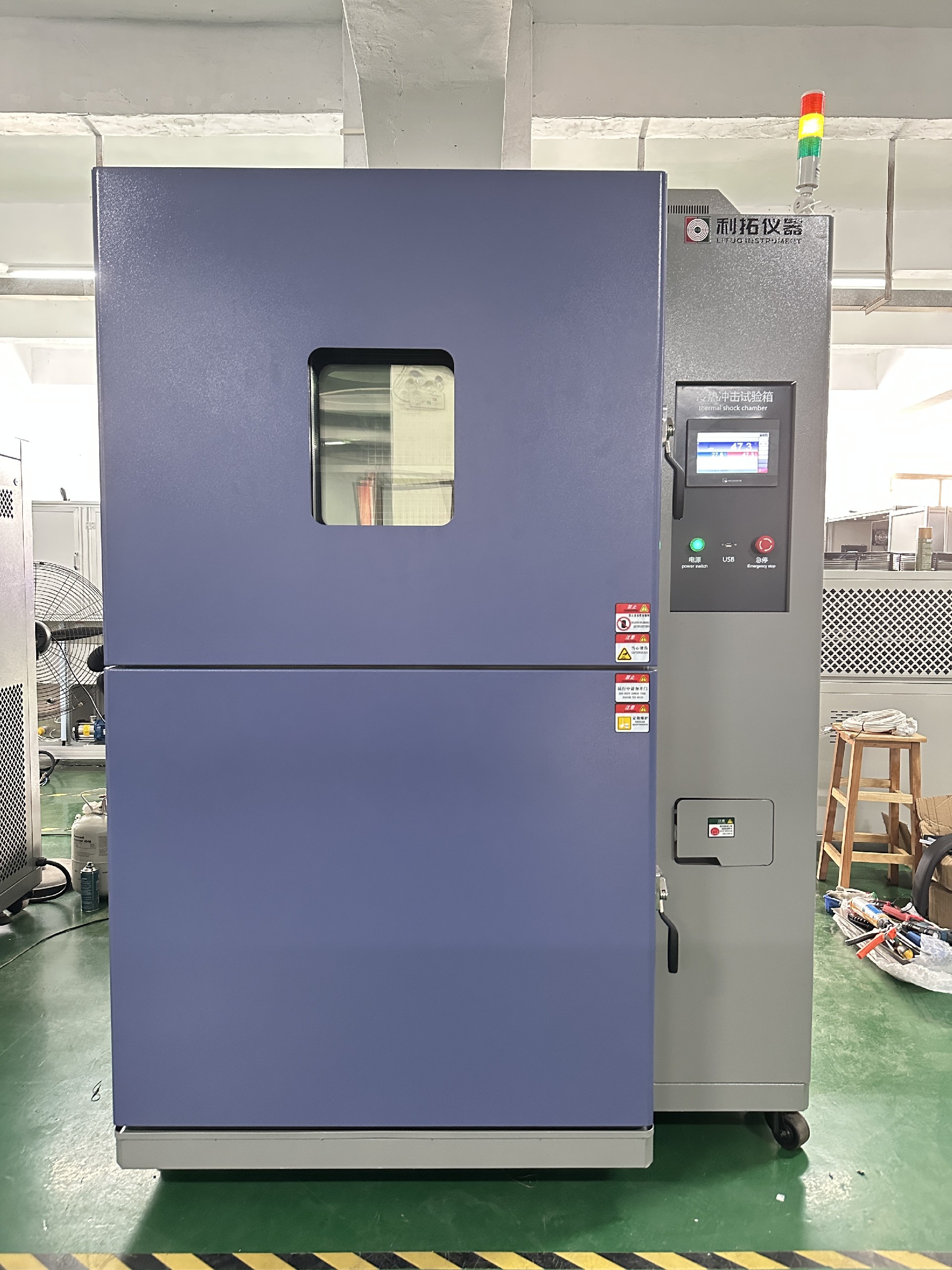

1.3 How Your LT-TS2 Series Chamber Works
Our LT-TS2 series programmable two-chamber thermal shock chamber combines robust engineering with advanced technology. The system features independent high-temperature (+60°C to +150°C) and low-temperature (-10°C to -65°C) zones separated by a high-performance insulation barrier. A precision-engineered mechanical basket, powered by a reliable drive system, transfers samples between zones in ≤10 seconds—critical for inducing true thermal shock. The French Tecumseh dual-stage compressor ensures rapid temperature recovery, while SUS304 stainless steel construction guarantees corrosion resistance and longevity. Our wind-path switching technology minimizes temperature loss during transfers, maintaining strict ±0.5°C control accuracy across all test cycles.
2. Core Applications & Compliance Standards
2.1 Key Industries Relying on Thermal Shock Testing
The programmable two-chamber thermal shock chamber is indispensable across industries where thermal reliability is non-negotiable. Electronics manufacturers use it to test PCBs, semiconductors, and display panels for soldering joint integrity and component lifespan. Automotive engineers validate sensors, control modules, and lighting systems for extreme weather conditions. Aerospace professionals rely on it to ensure avionics withstand the temperature swings of high-altitude flight. Even material scientists benefit from testing polymers, metals, and composites for thermal expansion and contraction properties—exactly what our LT-TS2 series excels at measuring.
2.2 Meeting Global & Military Test Standards
Compliance with international standards is non-negotiable for market access and customer trust. Our LT-TS2 series programmable two-chamber thermal shock chamber meets or exceeds critical specifications including GJB 150.5A-2009, GB/T 2424.13-2002, IEC 6008-2-1, and ANSI S3.25. These standards dictate test parameters for everything from temperature range and transition speed to dwell times and cycle counts, ensuring your products meet regulatory requirements worldwide. By choosing a chamber that complies with these benchmarks, you eliminate compliance risks and demonstrate a commitment to quality that sets your brand apart.
3. Critical Specifications of Your LT-TS2 Series Chamber
3.1 Temperature Range & Performance Metrics
Our LT-TS2 series programmable two-chamber thermal shock chamber delivers exceptional performance with a high-temperature range of +60°C to +150°C and low-temperature range of -10°C to -65°C. The ≤10-second transfer time between zones is critical for creating true thermal shock, while ±0.5°C control accuracy ensures test repeatability. Maximum test cycles reach 9999, allowing for extended reliability testing without manual intervention. These metrics aren’t just numbers—they translate to more accurate failure prediction, faster time-to-market, and reduced warranty costs.
3.2 Chamber Size & Load Capacity (Model Comparison)
We offer four LT-TS2 models to accommodate diverse testing needs:
· LT-TS2-49: 49L capacity (W350×H350×D400mm) for small components
· LT-TS2-80: 80L capacity (W400×H400×D500mm) for medium-sized parts
· LT-TS2-150: 150L capacity (W500×H500×D600mm) for larger assemblies
· LT-TS2-252: 252L capacity (W600×H600×D700mm) for bulky items
Each model maintains the same performance standards while scaling to your sample size requirements, ensuring you only pay for the capacity you need.
3.3 Control & Safety Features
The LT-TS2 series programmable two-chamber thermal shock chamber features optional Korean TEMI or Japanese OYO controllers for intuitive operation and precise programming. Safety systems include overheat protection, fault alarms, and low-pressure shutoffs to prevent equipment damage and ensure operator safety. Optional accessories like viewing windows, cable ports, and casters enhance usability for specialized applications. The PLC control system enables remote monitoring capabilities, positioning your chamber for future IoT integration as Industry 4.0 evolves.
4. How to Choose the Right Two-Chamber Thermal Shock Chamber
4.1 Define Your Testing Requirements
Start by identifying your temperature range needs, sample dimensions, and test cycle requirements. For small electronics testing, the LT-TS2-49 offers compact efficiency, while automotive manufacturers may prefer the LT-TS2-252 for testing larger components. Consider future growth—opting for a slightly larger chamber now can prevent costly equipment upgrades later.
4.2 Evaluate Key Technical & Build Factors
Not all programmable two-chamber thermal shock chambers are created equal. Look for SUS304 stainless steel construction for durability and corrosion resistance, and avoid chambers with inferior materials that degrade over time. The compressor is the heart of your system—our French Tecumseh dual-stage compressors deliver reliable performance with global support networks. Ensure the chamber meets your industry’s specific standards, as non-compliant equipment can lead to failed certifications.
4.3 Prioritize After-Sales & Support
Thermal shock chambers are long-term investments—choose a supplier that offers comprehensive after-sales support. Our service package includes installation, calibration, and ongoing maintenance to maximize your chamber’s lifespan and performance. We stock replacement parts for all LT-TS2 models, minimizing downtime if issues arise. Remember: the cheapest upfront cost often leads to higher long-term expenses due to frequent repairs and inaccurate test results.
5. Final Recommendations & Next Steps
The programmable two-chamber thermal shock chamber is more than testing equipment—it’s a quality assurance investment that directly impacts your bottom line. The LT-TS2 series combines industry-leading performance, compliance with global standards, and flexible sizing to meet diverse testing needs. By following our selection guidelines and maintenance best practices, you’ll maximize your chamber’s value while ensuring product reliability that builds customer trust.
Ready to elevate your quality control process? Contact us to request a custom quote for your LT-TS2 series programmable two-chamber thermal shock chamber.
