In the competitive world of stationery manufacturing, product quality is the ultimate differentiator. Whether you are producing high-end gel pens or standard ballpoints, ensuring consistent ink flow and smooth writing performance is non-negotiable. Enter the LT-WJB04-B Circle Writing Tester, a specialized instrument designed to simulate real-world writing conditions with precision. This guide explores how this machine ensures your pens meet international standards like QB/T 1655 and ISO requirements, helping you maintain brand reputation and customer satisfaction.

What is the LT-WJB04-B Circle Writing Tester?

The LT-WJB04-B Circle Writing Tester (also known as a Circular Scribing Machine) is an essential piece of laboratory equipment for the pen and ink industry. Unlike subjective manual testing, this machine provides objective, repeatable data on writing performance.

Its primary function is to evaluate the "scribing" capability of ballpoint pens, gel pens, and refills. By mechanically rotating a pen tip against a test paper under a controlled load and angle, it simulates the friction and pressure of human handwriting. The machine checks for critical defects such as ink skipping, broken lines, or uneven flow, which are common pain points for consumers. If you are looking for a reliable pen writing tester to validate your production line, the LT-WJB04-B is engineered to deliver accurate results every time.

Key Technical Specifications

Understanding the technical capabilities of the LT-WJB04-B is crucial for lab managers. Here are the core parameters that set this machine apart:

• Scribing Speed: Adjustable from 0 to 200mm/s, allowing for various testing speeds to mimic fast or slow writing.

• Precision: High accuracy of ±1 mm/s ensures consistent test results.

• Writing Angle: Fixed at (65±5)°, replicating the natural angle of a hand holding a pen.

• Writing Load: Standardized at 0.98N (equivalent to a 100g weight), ensuring uniform pressure on the nib.

• Capacity: Capable of testing 10 samples simultaneously, significantly boosting lab efficiency compared to single-head testers.

• Test Surface: Uses a polished stainless steelbacking plate to ensure a smooth, consistent surface for the paper.

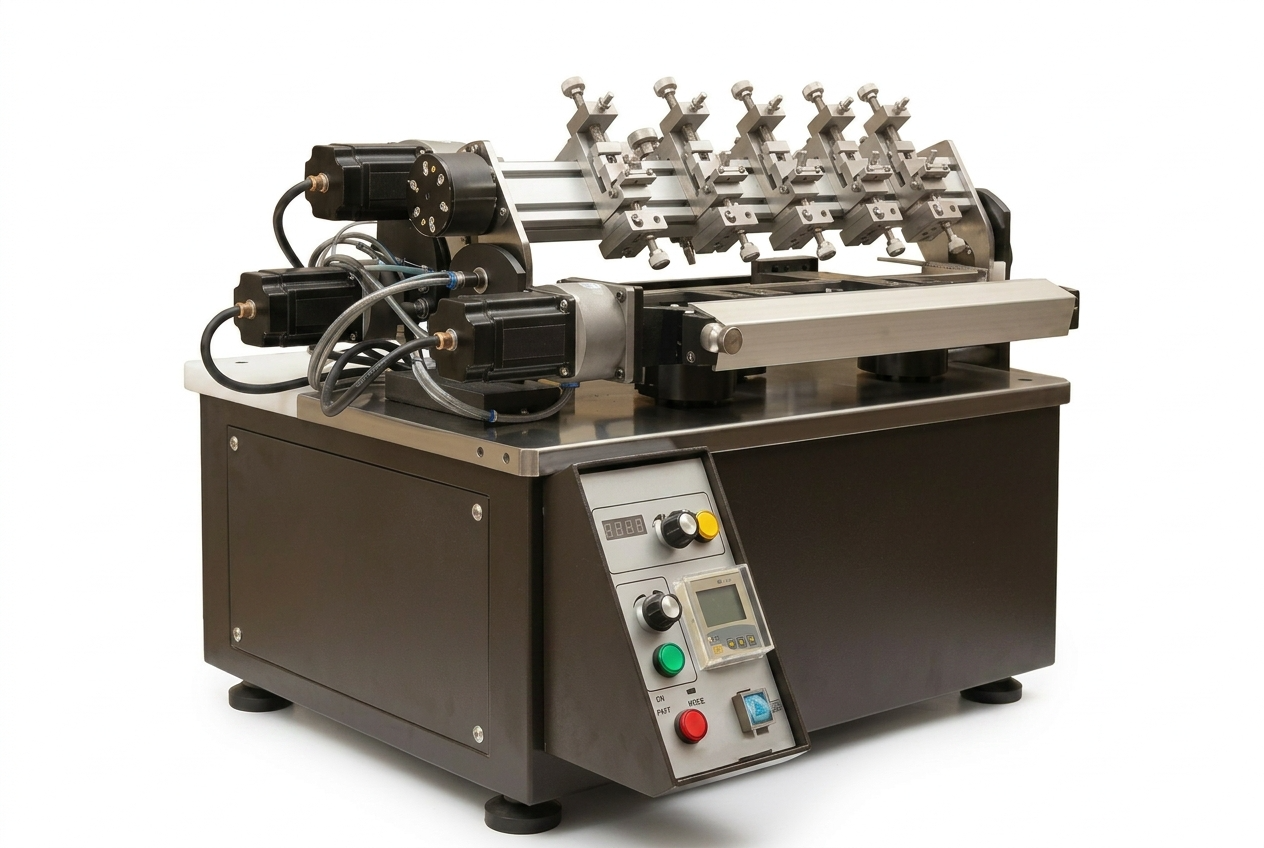

LT-WJB04-B Circle Writing Tester for pen quality control

Why Choose the LT-WJB04-B for Your Lab?

When selecting a circle writing machine, reliability and compliance are paramount. The LT-WJB04-B is not just a mechanical device; it is a compliance tool designed to meet rigorous industry standards.

Compliance with International Standards

One of the strongest selling points of the LT-WJB04-B Circle Writing Tester is its adherence to major national and industrial standards. Using this machine ensures your products are compliant with:

• QB/T 2671-2011: For oil-based ballpoint pens and refills.

• QB/T 1655-2006: Specifically for water-based ballpoint pens.

• QB/T 2625-2011: For neutral ink (gel) ballpoint pens.

• GB/T 26711-2011: For micro-pore pens.

• QB/T 2993-2015: For erasable ballpoint pens.

By integrating this pen testing instrument into your workflow, you guarantee that your batch testing aligns with the regulatory requirements of the Chinese market and international equivalents.

Efficiency and Automation

Manual testing is prone to human error and fatigue. The LT-WJB04-B automates the process. With the ability to hold 10 pens at once, a technician can set the speed, apply the standardized 100g load, and let the machine run. This automation frees up staff for other quality control tasks while ensuring that the "circle scribing" pattern is perfectly uniform for every sample.

How to Operate the LT-WJB04-B Circle Writing Tester

Operating the LT-WJB04-B is straightforward, but precision is key. Here is a step-by-step overview of the typical testing procedure:

• Preparation: Place the standard test paper on the polished stainless steel backing plate. Ensure the surface is clean.

• Sample Loading: Insert up to 10 pen samples into the holders. Ensure they are secured tightly.

• Parameter Setting: Set the desired scribing speed (e.g., specific mm/s based on your standard) on the control panel.

• Load Application: The machine automatically applies the 0.98N (100g) vertical load to the pen tips.

• Execution: Start the machine. The holder will rotate, drawing circles on the paper.

• Analysis: After the test cycle, inspect the trace. Does the line break? Is the ink flow continuous? Compare the results against the pass/fail criteria of standards like QB/T 1655.

 Pro Tip: Always calibrate the writing angle to ensure it remains at 65±5 degrees. A deviation here can drastically alter the friction coefficient and invalidate your test results.

Applications Beyond Ballpoint Pens

While primarily known as a ballpoint pen testing machine, the versatility of the LT-WJB04-B extends to other writing instruments. It is widely used in the R&D and QC departments of manufacturers producing:

• Gel Pens (Neutral Ink): Testing the viscosity and flow of thicker inks.

• Rollerball Pens: Ensuring liquid ink does not blob or skip.

• Marker Pens: Checking the durability of fiber tips under rotational friction.

• Refill Manufacturing: Validating the quality of refills before they are assembled into pen bodies.

Conclusion: Elevate Your Stationery Quality with Lituo

Quality control is an investment, not a cost. The LT-WJB04-B Circle Writing Tester offers a cost-effective, high-precision solution for verifying the writing performance of your products. By adhering to strict standards like QB/T 2671 and QB/T 1655, you protect your brand from returns and negative reviews.

At Dongguan Lituo Testing Instrument Co., Ltd., we don't just sell machines; we provide solutions. With over 15 years of experience and a commitment to innovation, our LT-WJB04-B is built to last. Ready to upgrade your lab? Contact us today for a quote or to request a demo of our circle writing technology.
